Toppest quality block ice making machine for industrial

  • 1 - 4 Sets
    $120,000.00
  • >=5 Sets
    $9,500.00
Model Number:
BBI 20
Output:
2 ton/24hours
Customization:
Customized packaging (Min. Order: 10 Sets)
Customized logo (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Philippines, Malaysia
Showroom Location:
Philippines, Malaysia
Place of Origin:
Guangdong, China
Brand Name:
CBFI
Power(W):
6.42 kw
Dimension(L*W*H):
3600*1700*795 mm
Warranty:
1 YEAR, 1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Easy to Operate
Ice storage capacity:
1000kg
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
Pressure vessel, Motor, Bearing, Gear, pump, Gearbox, engine, PLC
Compressor:
Germany Bitzer
Material:
Stainless Steel 304
Refrigerant:
R404a/R22a
Ice size:
Customized Size
Application:
industrial
Cooling way:
Water Cooling/Air Cooling
Regitator:
Siemens
PLC Program:
Siemens
Solenoid valve:
Italy Castal
Condition:
New
Ice Shape:
Ice Block
Certification:
CE
Voltage:
380v/50hz/3p
Weight:
1100 KG
Supply Ability
Supply Ability:
30 Set/Sets per Month

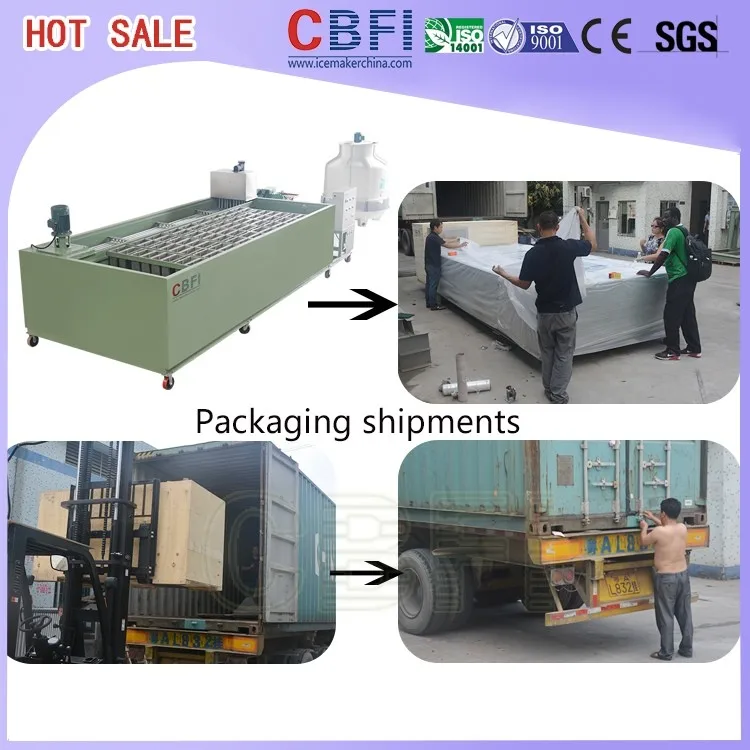

Packaging & Delivery
Packaging Details
1.Standard wooden case for packing main frame of block ice machine.
Containerized design no need packing.
2.Machine installed completely and strictly tested in our factory before shipping.
3.Completely machine:ice machine, cooling tower, water pumps, water pipes, water pipe fittings.
4.Cutomer only need prepare power and water for running the machine.
5.All required components for install the machine will be provide
Port
Huangpu Port/Nansha Port
Video Description
Product Description

CBFI BBI50 5 Tons Per Day Block Ice Machine Machine Used R404A

5 ton block ice machine is always used to build a containerized block ice plant. The advantages are acceptable price, low power consumption and convenient to move.

       Product Features

  • Daily production: 5 ton per day.
  • CE approved product
  • Coil pipe evaporator is our invention patent, it has a better evaporating effect with longer lifespan.
  • High power water agitator is used to replace the common water pump. The block ice machine is energy saving. Ice making power consumption had declined from 110kW·h to 74kW·h/ton.
  • Agitator makes the brine flowing faster, so that shorten the ice frozen time and improve the refrigeration effect of the whole machine. And agitator is much harder to be broken than water pump.
  • Ice making tank adopts 80mm thickness polyurethane insulation material. It has good effect in heat insulation.

       Block Ice Application

       Product Parameter

BBI50 Block Ice Machine Parameters
Name Unit Parameter





Bitzer Compressor Parameter

Model 4GE-23
Cooling Capacity(kW) 33.9
Power(kW) 14.05



Condenser

Model WN-20
Heat Exchange(kW) 74.2
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -18
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant   R22
Voltage V/P/HZ 380/3/50
Agitator Power(kW) 2.2



Cooling Tower

Model LX-30
Power(kW) 0.55



Cooling Pump

Model GD65-19
Power 2.2
SS304 Ice Mold Dimension L*W*H(mm) Customized
Machine Dimension L*W*H(mm) Customized
Remarks Crane is not included.

       Product Details

       Projects & Related Products



Contact Us



Company Information

ABOUT US

Guangzhou Icesource Co., Ltd. (trademark CBFI), a pioneer in the large-scale fluorine refrigeration and ice making equipment industry, is an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales .The main products are block ice machinetube ice machinecube ice machineflake ice machineplate ice machinecold room, intelligent cold room unit, ice machine supporting equipment and fully automated ice plant. Products are widely used in food, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.



The company was established in 2010, and the research and development started in 2004.  Since the establishment of the company, it has continuously increased investment in product research and development. All sales products are independent research and development products. By April 2018, there were 2 invention patents, 21 utility model patents, 1 appearance patent, and 9 invention patents and 6 utility model patents are under examine and verify.

Our Services

OUR SERVICE

Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by our engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.

FAQ

FAQ

1.Q: are you add refrigerant in the ice machine?

    A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



2.Q:do you test the ice machine in your factory?

   A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



3.Q: can you load ice machine into container?

   A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.



4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?

   A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
